Honda Dio 125 X-Edition

The Honda Dio 125 X-Edition is a stylish and sporty 125cc scooter designed for young, urban riders who want performance with standout looks. It features a bold dual-tone design with exclusive X-Edition graphics and alloy wheels, giving it a dynamic road presence. Powered by a refined 123.9cc engine, it delivers smooth performance and excellent fuel efficiency for daily commuting.

Equipped with modern features like a TFT display, smartphone connectivity, USB charging port, and advanced idling stop system, the Dio 125 X-Edition offers both convenience and technology. With its comfortable ride, safety features like side-stand engine cut-off, and Honda’s trusted reliability, it’s a perfect blend of style, efficiency, and practicality

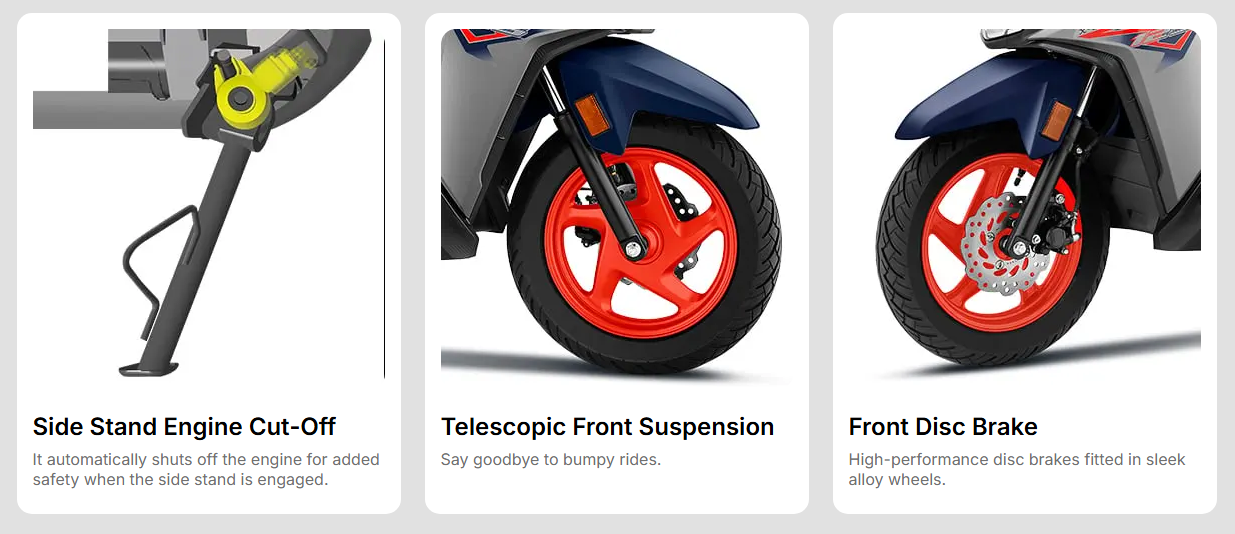

Safety

Ground the Right Way

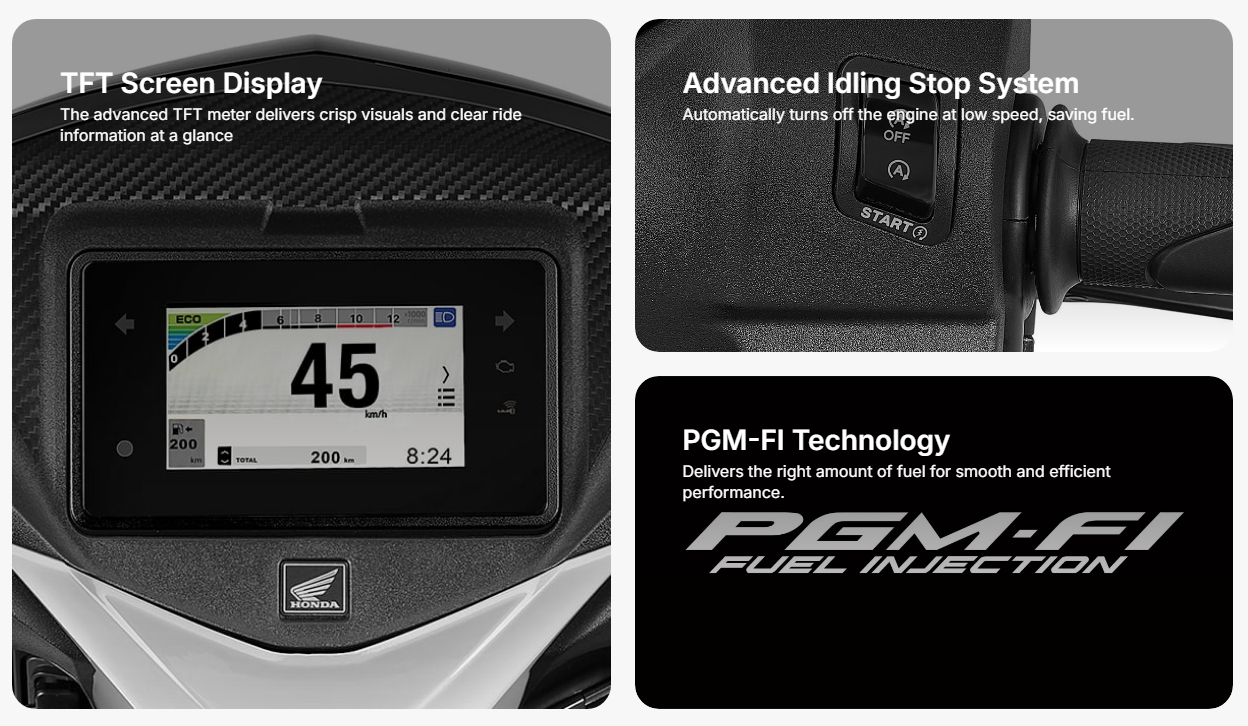

Technology

Ground the Right Way
Engine Type 4 Stroke, SI Engine
Displacement 123.92 cc
Max Net Power 6.11 kW @ 6500 rpm
Max Net Torque 10.5 Nm @ 5000 rpm
Bore 50 mm
Stroke 63.113 mm
Compression Ratio 10.0:1
Fuel System PGM-FI
Air Filter Type Viscous Paper Filter
Starting Method Self Start
Clutch Type Automatic Centrifugal Clutch (Dry)
Gearbox Type Automatic
Transmission Type V-Matic
Front Brake Type Disc
Front Brake Size 190 mm
Rear Brake Type Drum
Rear Brake Size 130 mm
Calliper Type --
Front Wheel Size 12 inch
Rear Wheel Size 10 inch
Frame Type Underbone
Front Tyre Size 90/90-12 54J Tubeless
Rear Tyre Size 90/100-10 53J Tubeless
Tyre Type Tubeless
Radial Tyres No
Wheel Type Spoke
Front Suspension Telescopic
Rear Suspension 3-Step Adjustable, Spring Loaded Hydraulic
Kerb Weight 105 kg
Overall Length 1830 mm
Overall Width 707 mm
Overall Height 1172 mm
Wheelbase 1260 mm
Ground Clearance 171 mm
Seat Height 765 mm
Seat Length 708 mm
Fuel Tank Capacity 5.3 L
Chassis Type Under Bone
